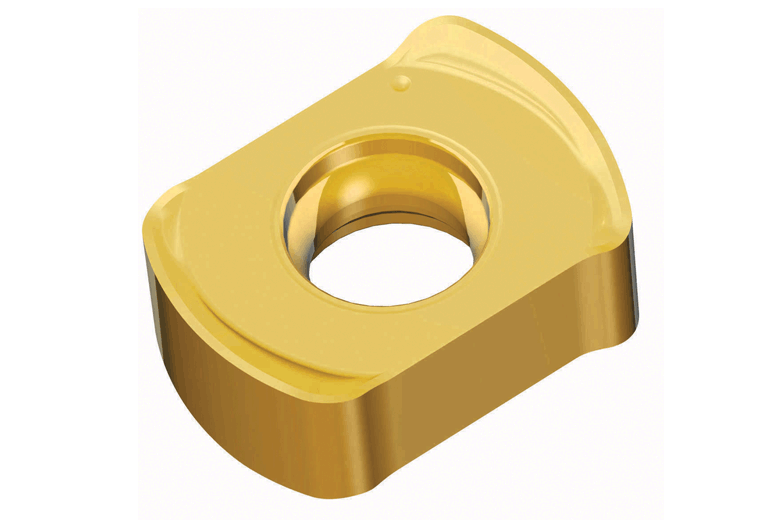

    Taegutec BLMP0904R-M TT9080 (10db / doboz)

    Kód: 2518
    Akció Újdonság
    47 000 Ft –65 %
    s l960 (1)
    47 000 Ft –65 % 16 000 Ft
    Raktáron

    A termék bontatlan csomagolásban van!

    1 doboz/10db lapkát tartalmaz!

    A feltüntetett ár 10db/doboz lapkára értendő!!!!

    Részletes információ

    Termék részletes leírása



    Family Designation: BLMP 09-M Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm





    Item Designation: BLMP 0904R-M

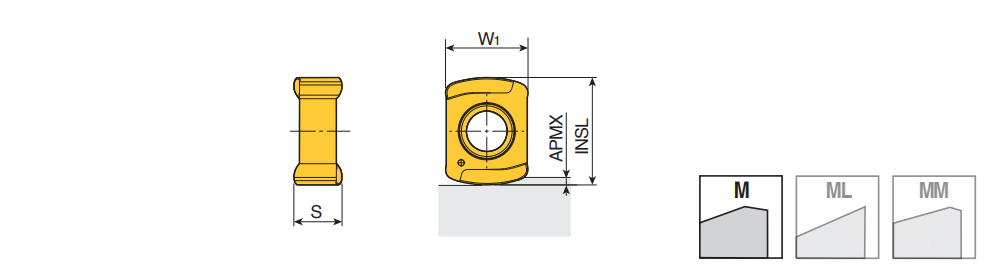

    INSL W1 S APMX ap
    (min)    		 ap
    (max)    		 fz
    (max)    		 fz
    (min)
    11.94 9.20 4.79 1.50 0.10 1.50 3.500 0.300

    Grade : TT9080
    General machining of steels, stainless steels and heat-resistant steel Achieves excellent surface finish

    ISO Range - P/M/K (P20-P40)(M20-M40)
    ISO Range - H/S/N (S20-S40)

    Grade or Coating Type PVD
    Coating Layers TiAlN-TiN
    Grade Color YELLOW




    Cutting Speed for: BLMP 0904R-M TT9080 - 5616091


    ISO Workpiece Material Group Material Designation Material Condition Hardness Cutting Speed Recommendations (Vc)
    P 1 Non-alloy steel and cast steel, free cutting steel <0.25%C. Annealed 125 HB 220-370 m/min
    P 2 Non-alloy steel and cast steel, free cutting steel >=0.25%C. Annealed 190 HB 180-310 m/min
    P 3 Non-alloy steel and cast steel, free cutting steel <0.55%C. Quench and tempered. 250 HB 115-195 m/min
    P 4 Non-alloy steel and cast steel, free cutting steel >=0.55%C. Annealed 220 HB 130-210 m/min
    P 5 Non-alloy steel and cast steel, free cutting steel >=0.55%C. Quenched & tempered. 300 HB 115-175 m/min
    P 6 Low alloy & cast steel (less than 5% of alloying elements). Annealed 200 HB 175-265 m/min
    P 7 Low alloy & cast steel (less than 5% of alloying elements). Quenched & tempered 275 HB 130-215 m/min
    P 8 Low alloy & cast steel (less than 5% of alloying elements). Quenched & tempered 300 HB 105-185 m/min
    P 9 Low alloy & cast steel (less than 5% of alloying elements). Quenched & tempered 350 HB 95-160 m/min
    P 10 High alloyed steel, cast steel and tool steel. Annealed 200 HB 85-155 m/min
    P 11 High alloyed steel, cast steel and tool steel. Quenched & tempered 325 HB 75-135 m/min
    M 12 Stainless steel and cast steel. Ferritic/martensitic 200 HB 115-270 m/min
    M 13 Stainless steel and cast steel. Martensitic 240 HB 100-230 m/min
    M 14 Stainless steel and cast steel. Austenitic 180 HB 120-275 m/min
    K 15 Grey cast iron (GG) Pearlitic/ferritic 180 HB 130-300 m/min
    K 16 Grey cast iron (GG) Pearlitic/martensiti 260 HB 120-280 m/min
    K 17 Nodular cast iron (GGG) Ferritic 160 HB 110-220 m/min
    K 18 Nodular cast iron (GGG) Pearlitic 250 HB 100-200 m/min
    K 19 Malleable cast iron. Ferritic 130 HB 150-250 m/min
    K 20 Malleable cast iron. Pearlitic 230 HB 100-250 m/min
    S 31 High temp. alloys Fe based. Annealed 200 HB 40-80 m/min
    S 32 High temp. alloys Fe based. Cured 280 HB 30-60 m/min
    S 33 High temp. alloys. Ni or Co based. Annealed 250 HB 35-70 m/min
    S 34 High temp. alloys. Ni or Co based. Cured 350 HB 30-60 m/min
    S 35 High temp. alloys. Ni or Co based. Cast 320 HB 35-65 m/min
    S 36 Titanium Ti alloys. 310 HB 90-130 m/min
    S 37 Titanium Ti alloys. Alpha+beta alloys cu 310 HB 35-70 m/min
    H 38 Hardened steel. Hardened 55 HRC 40-75 m/min
    H 39 Hardened steel. Hardened 60 HRC 30-55 m/min
    H 40 Chilled cast iron. Cast 400 HB 70-105 m/min
    H 41 Cast iron. Hardened 55 HRC 50-65 m/min
